Create

---

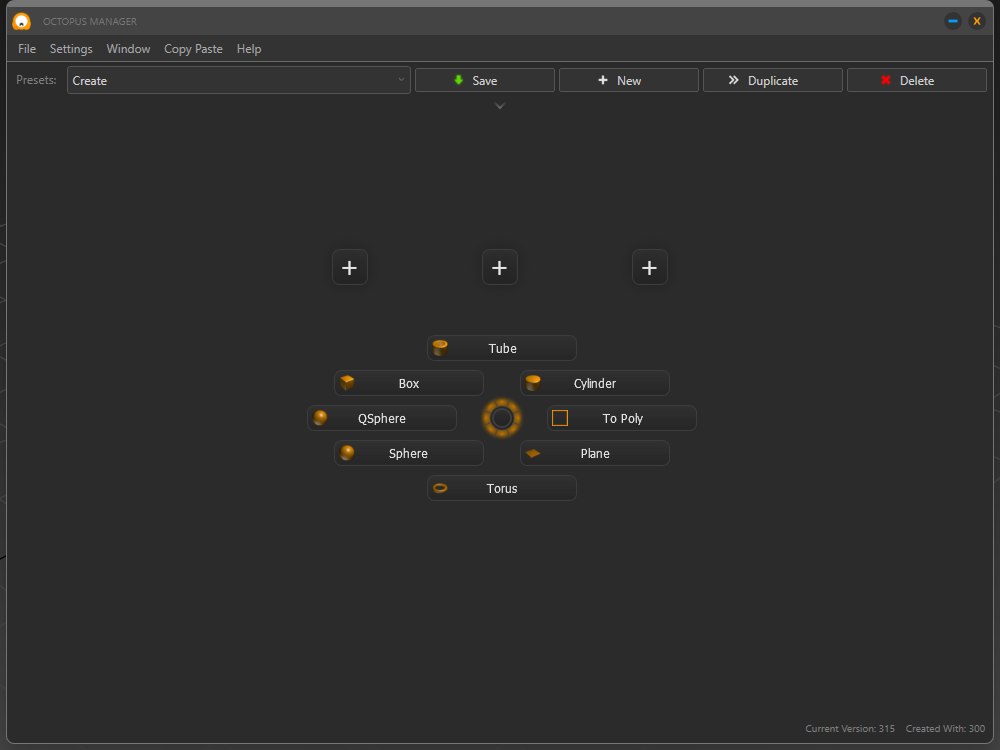

The Create Octopus Menu is the home to create basic primitive objects. All of them have a Single and a Spinner mode. This menu is using Hold and Release as well.

Box

Each axis controls the following.

Right Click Spinner

Octopus Cursor	Axis Parameter
Horizontal Movement	Width
Vertical Movement	Length
Wheel Change	Height

Left Click Spinner

Octopus Cursor	Axis Parameter
Horizontal Movement	Width Segments
Vertical Movement	Length Segments
Wheel Change	Height Segments

Tube

Right Click Spinner

Octopus Cursor	Axis Parameter
Horizontal Movement	Outer Radius
Vertical Movement	Height
Wheel Change	Inner Radius

Left Click Spinner

Octopus Cursor	Axis Parameter
Horizontal Movement	Cap Segments
Vertical Movement	Height Segments
Wheel Change	Sides

Cylinder

Right Click Spinner

Octopus Cursor	Axis Parameter
Horizontal Movement	Radius
Vertical Movement	Height
Wheel Change	Radial Segments

Left Click Spinner

Octopus Cursor	Axis Parameter
Horizontal Movement	Cap Segments
Vertical Movement	Height Segments
Wheel Change	-

Sphere / QSphere

Note

QSphere is a special sphere. It basically uses a Spherified Box to get the result.

Octopus Cursor	Axis Parameter
Horizontal Movement	Radius
Vertical Movement	-
Wheel Change	Segments

Plane

Right Click Spinner

Octopus Cursor	Axis Parameter
Horizontal Movement	Width
Vertical Movement	Height
Wheel Change	-

Left Click Spinner

Octopus Cursor	Axis Parameter
Horizontal Movement	Length Segments
Vertical Movement	Width Segments
Wheel Change	-

Torus

Right Click Spinner

Octopus Cursor	Axis Parameter
Horizontal Movement	Radius 1
Vertical Movement	Radius 2
Wheel Change	Segments and Sides

Left Click Spinner

Octopus Cursor	Axis Parameter
Horizontal Movement	Segments
Vertical Movement	Sides
Wheel Change	-
